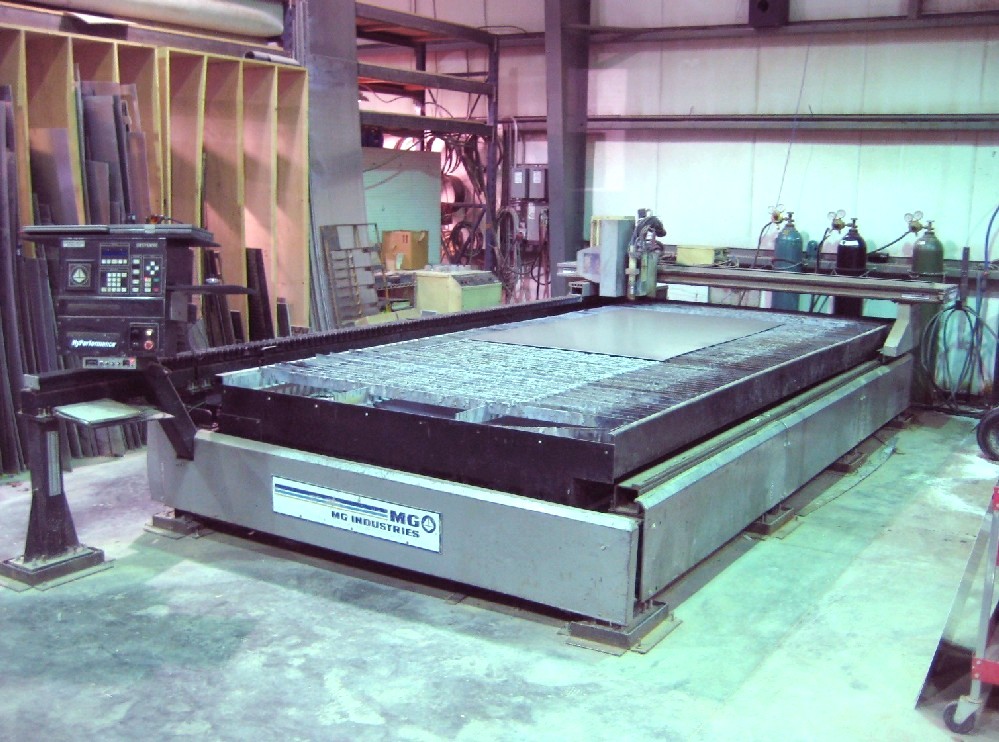

MG MESSER HyDEFINITION METALMASTER HT-1070 CNC PLASMA CUTTING SYSTEM, 15 ft X 7 ft TRAVEL,70 AMP,SYSTEM 80 CONTROL,DRAFT

Stock Number: 4835

Click to view larger photo

Request A Quote On Our Stock Number: 4835 MG MESSER HyDEFINITION METALMASTER HT-1070 CNC PLASMA CUTTING SYSTEM, 15 ft X 7 ft TRAVEL,70 AMP,SYSTEM 80 CONTROL,DRAFT

Request A Quote On Our Stock Number: 4835 MG MESSER HyDEFINITION METALMASTER HT-1070 CNC PLASMA CUTTING SYSTEM, 15 ft X 7 ft TRAVEL,70 AMP,SYSTEM 80 CONTROL,DRAFT

Request a quote on stock# 4835

Specification	Description
MFG DATE	1994
TABLE SIZE	16'L x 6.5'W x 2.5'H, 193"x 80
MAX. CUTTING LENGTH/TRAVEL	183"
MAX. CUTTING WIDTH/TRAVEL	84"
CUTTING FEED RATE/SPEED, MAX.	10 - 1000 IPM (VARIABLE)
OUTPUT POWER SUPPLY/CURRENT	15 - 70 AMP
CUTTING THICKNESS, MAX.	3/8" [9.5mm]
GAS LINES, PLUMBED	NITROGEN, OXYGEN, METHANE, AIR
MAX. OPEN CURRENT VOLTAGE (OCV)	280 VDC
EXHAUST SYSTEM TYPE	FORCED DOWN-DRAFT w/DUCTWORK
DISTANCE BETWEEN BRIDGE COLUMNS	87.5" W
HEIGHT UNDER BRIDGE	7" H
DIMENSIONS, APPROX.	259"L X 116"W
WEIGHT, APPROX.	7500 LBS

Equipped With:

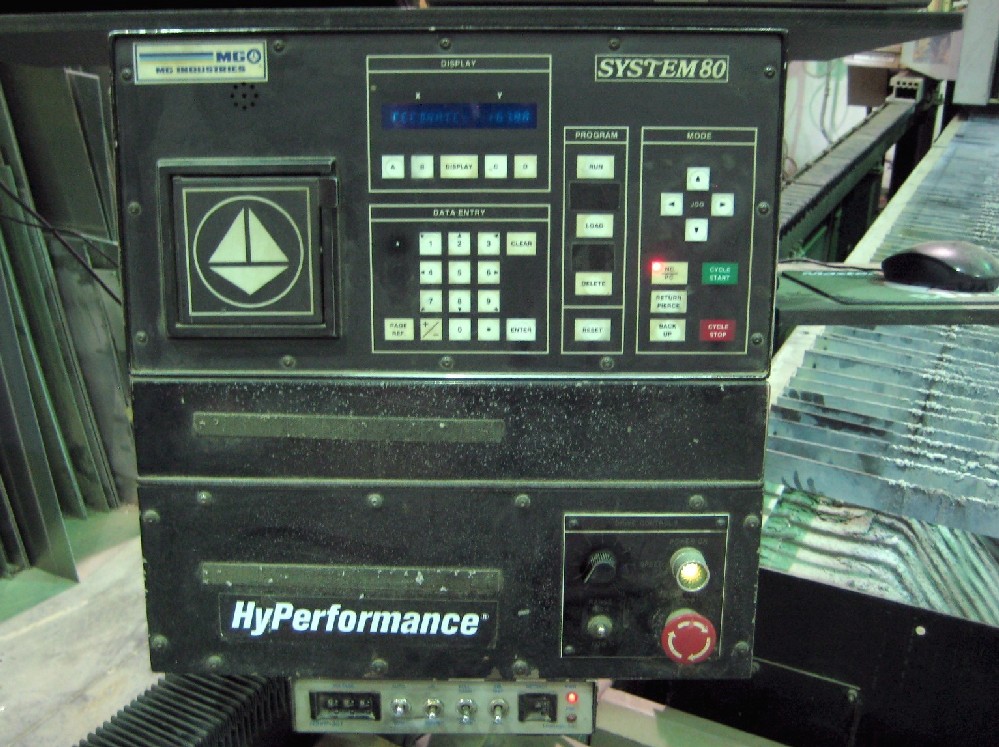

SYSTEM 80 HyPERFORMANCE CONTROL w/GRAPHICS,

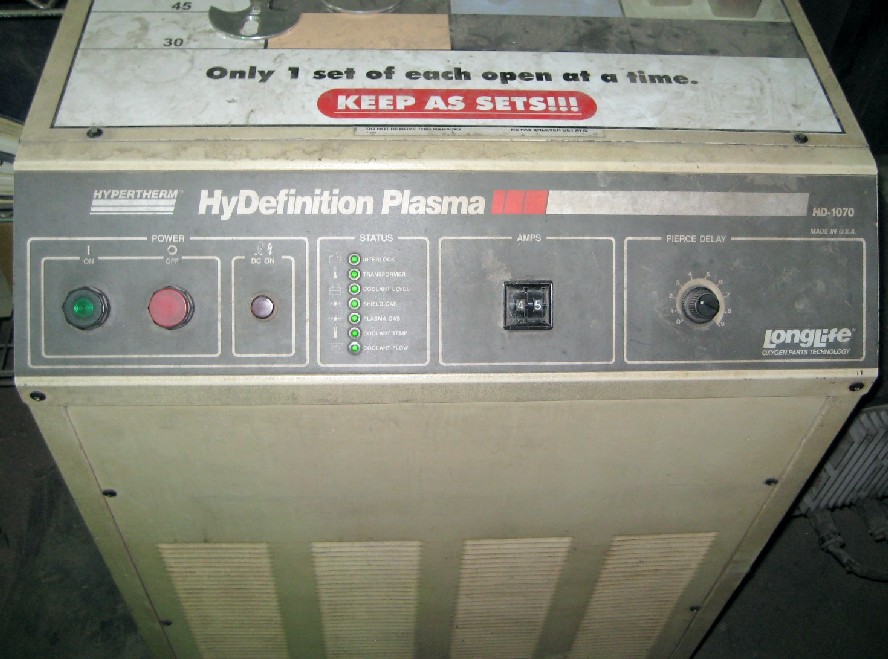

HYPERTHERM HT-1070 RHF HyDEFINITION PLASMA ARC SYSTEM,

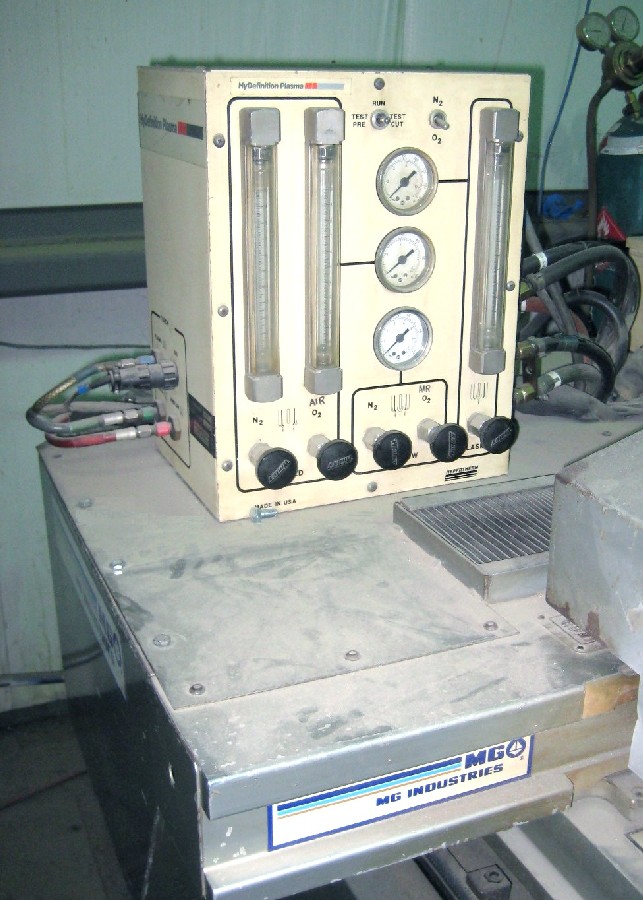

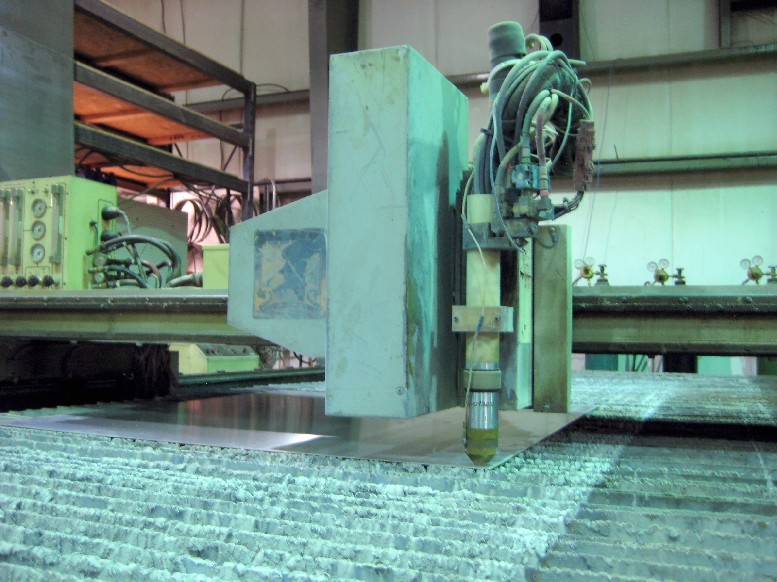

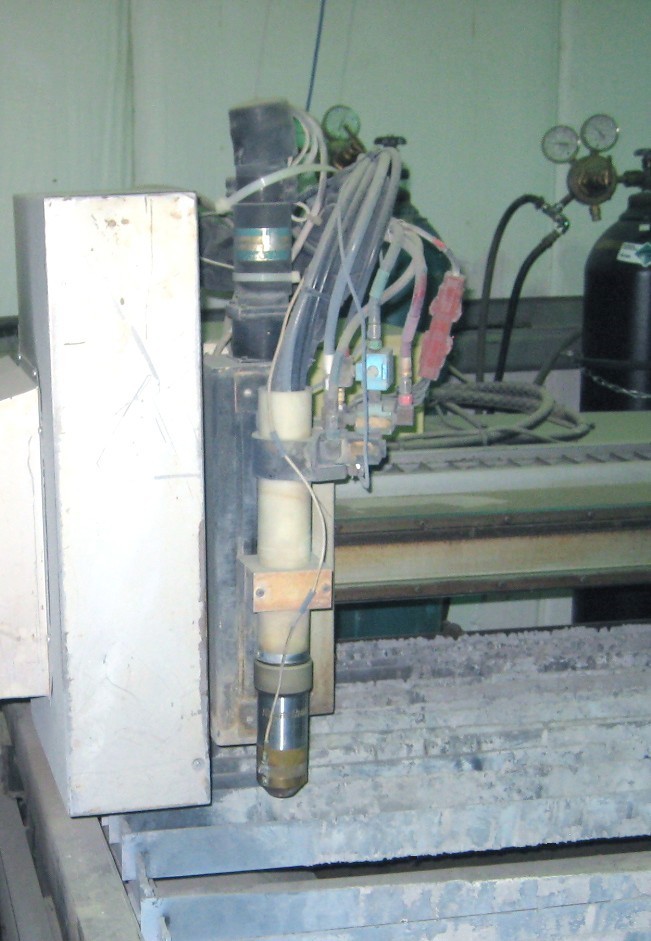

PAC180 DUAL GAS TORCH (PLASMA & SHIELD GAS FLOW),
RS232 COMMUNICATIONS PORT FOR DNC OPERATION,
50 SHAPE LIBRARY (EACH CAN BE MODIFIED w/INCH or METRIC),
3-ZONE DOWN-DRAFT EXHAUST SYSTEM w/BLOWER,

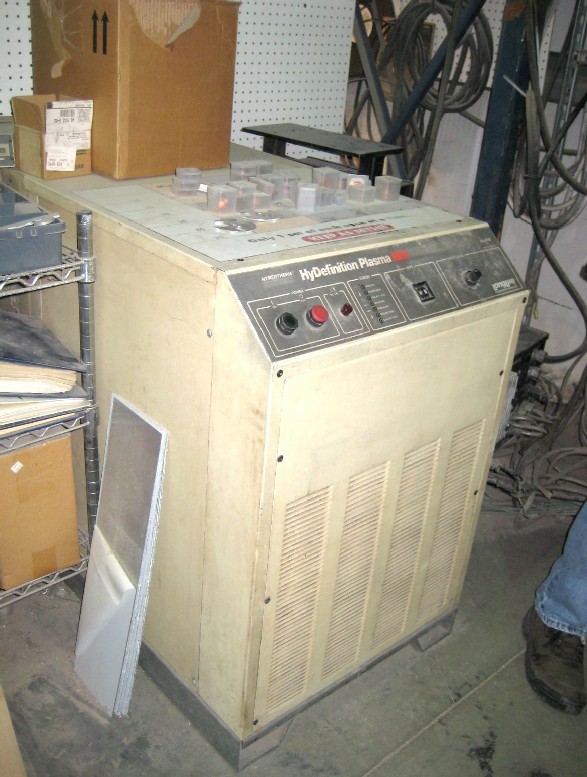

HyPERTHERM 70 AMP POWER SUPPLY,
KERF CUTTING (BOTH +/-) & EDGE CUT & PIERCING,

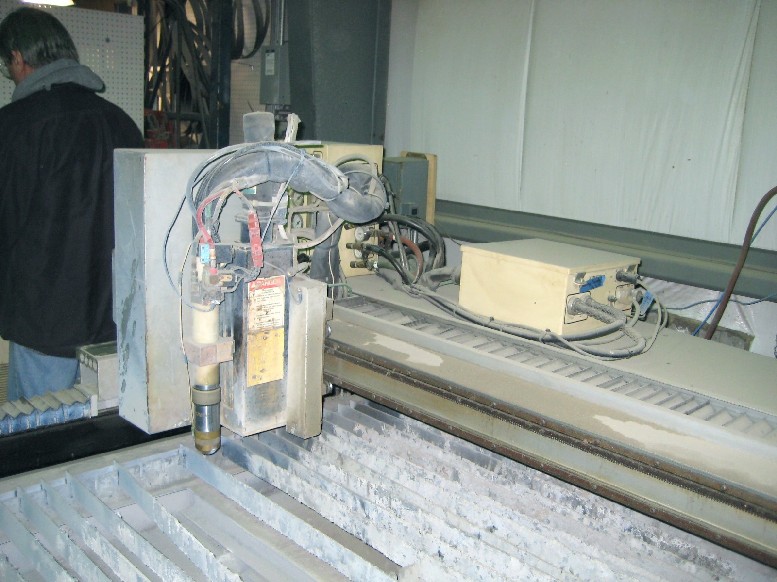

INNERLOGIC RSVP-301 SERVO HEIGHT POSITIONER REMOTE CTRL,
POWERTRAK HOSE & CABLE SUPPORT/GUIDE,

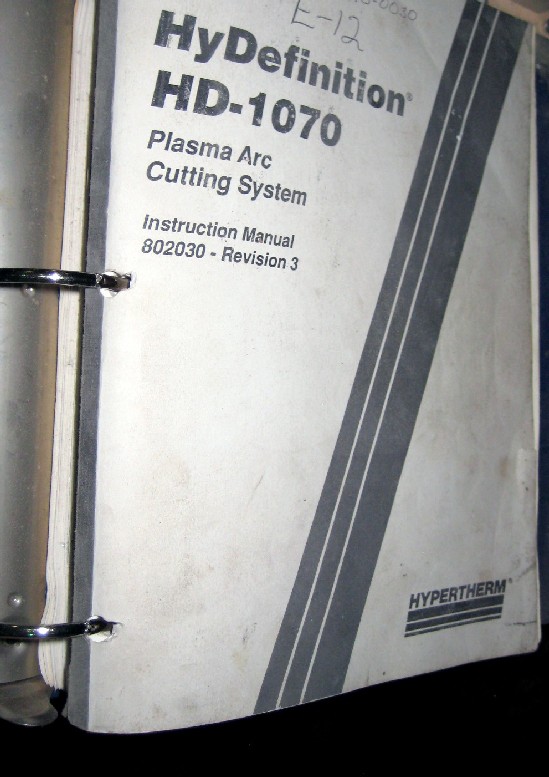

MANUALS: OPERATIONS, ELECTRICAL & GAS, PARTS, CONTROL,
**VIDEO IN OPERATION IS AVAILABLE UPON REQUEST**
***CUTTING STAINLESS STEEL & ALUMINUM***
****TurboNest AUTO-CAD-NESTING SOFTWARE INCLUDED****
