CNC TURNING CENTERS: MAZAK QUICK TURN 35N BIG BORE (QT-35N) CNC LATHE, 20 in. CHUCK, 40 in. CENTERS, 6.5 in. SPINDLE BORE, 40 HP, MAZATROL

MAZAK QUICK TURN 35N BIG BORE (QT-35N) CNC LATHE, 20 in. CHUCK, 40 in. CENTERS, 6.5 in. SPINDLE BORE, 40 HP, MAZATROL

Stock Number: 4617

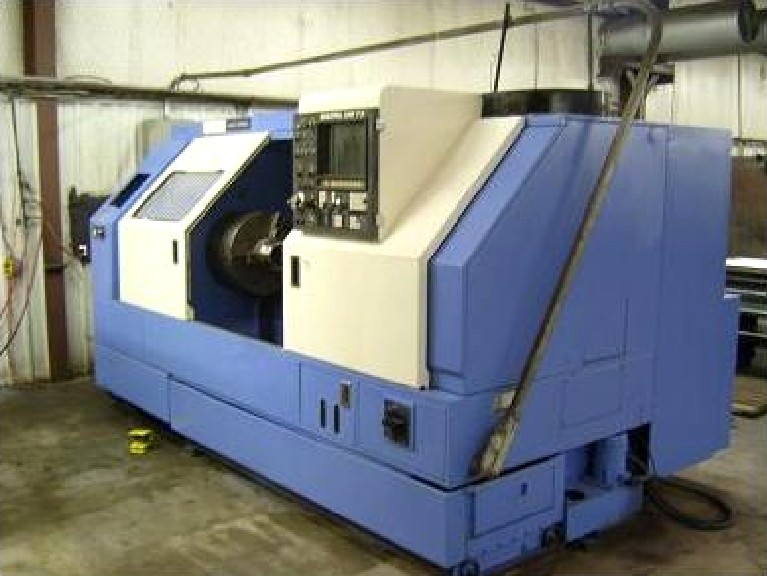

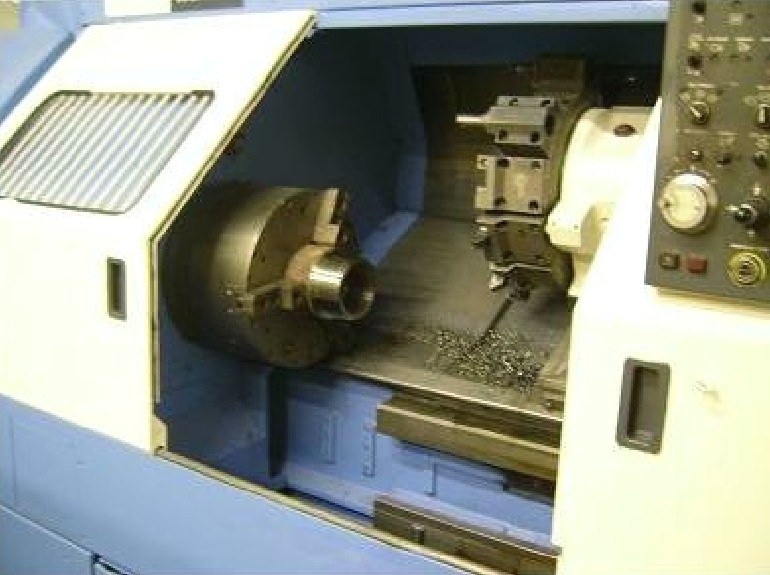

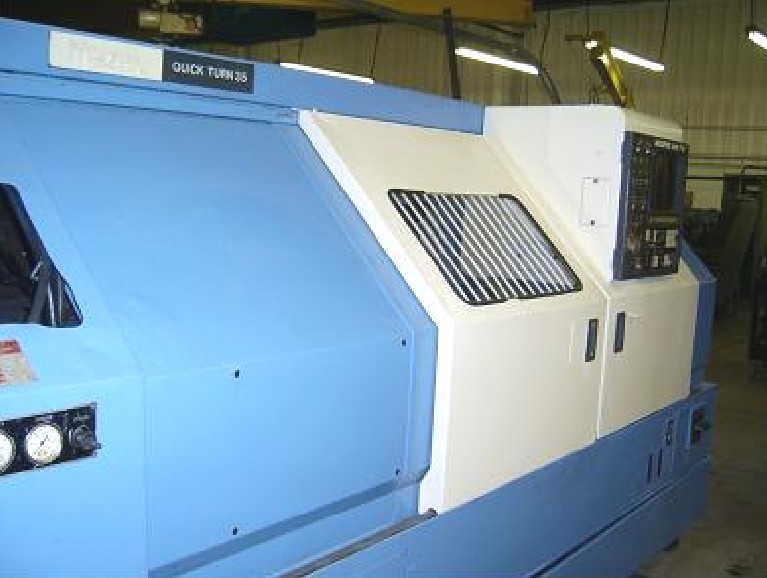

CNC TURNING CENTERS: MAZAK QUICK TURN 35N BIG BORE (QT-35N) CNC LATHE, 20 in. CHUCK, 40 in. CENTERS, 6.5 in. SPINDLE BORE, 40 HP, MAZATROL, Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN 35N BIG BORE (QT-35N) CNC LATHE, 20 in. CHUCK, 40 in. CENTERS, 6.5 in. SPINDLE BORE, 40 HP, MAZATROL, Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN 35N BIG BORE (QT-35N) CNC LATHE, 20 in. CHUCK, 40 in. CENTERS, 6.5 in. SPINDLE BORE, 40 HP, MAZATROL, Click to view larger photo...       CNC TURNING CENTERS: MAZAK QUICK TURN 35N BIG BORE (QT-35N) CNC LATHE, 20 in. CHUCK, 40 in. CENTERS, 6.5 in. SPINDLE BORE, 40 HP, MAZATROL, Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4617 CNC TURNING CENTERS: MAZAK QUICK TURN 35N BIG BORE (QT-35N) CNC LATHE, 20 in. CHUCK, 40 in. CENTERS, 6.5 in. SPINDLE BORE, 40 HP, MAZATROLRequest a quote on stock# 4617
SpecificationDescription
MANUFACTURED NEW1989
MAXIMUM SWING20.08"
MAXIMUM TURNING DIAMETER15.75"
MAXIMUM TURNING LENGTH41.02"
X AXIS TRAVEL11.02"
Z AXIS TRAVEL41.42"
RAPID TRAVERSE RATE X & Z AXES472 IPM & 709 IPM
SPINDLE BORE6.5"
SPINDLE SPEEDS30 - 3000 RPM
SPINDLE MOTOR40/30 HP
SPINDLE NOSEA2-11
TURRET CAPACITY12 STATIONS
TAILSTOCK BODY TRAVEL18.1"
MACHINE WEIGHT, APPROX.12800 LBS
FLOOR SPACE NEEDED, APPROX.135" x 81"

Equipped With:
MAZATROL T-2 CNC CTRL w/COLOR GRAPHICS,
RS-232C PORT INTERFACE FOR DNC OPERATION,
20" SMW 3-JAW CHUCK (w/6.5" THRU-HOLE),
"BIG BORE" SPINDLE OPTION,
PROGRAMMABLE TAILSTOCK,
STANDARD COOLANT SYSTEM, ALL AVAILABLE MANUALS
