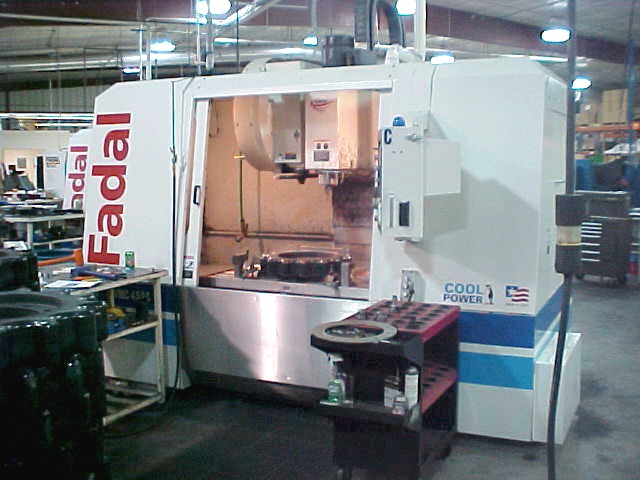

CNC VERTICAL MACHINING CENTERS: FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414)

FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414)

Stock Number: 4414

CNC VERTICAL MACHINING CENTERS: FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4414 CNC VERTICAL MACHINING CENTERS: FADAL VMC-4525 CNC MILL, MP CNC CTRL, 45 x 25 x 24, 10000 RPM, 30HP HIGH TORQUE, 2002, (4414)Request a quote on stock# 4414
SpecificationDescription
DATE OF MANUFACTURE2002

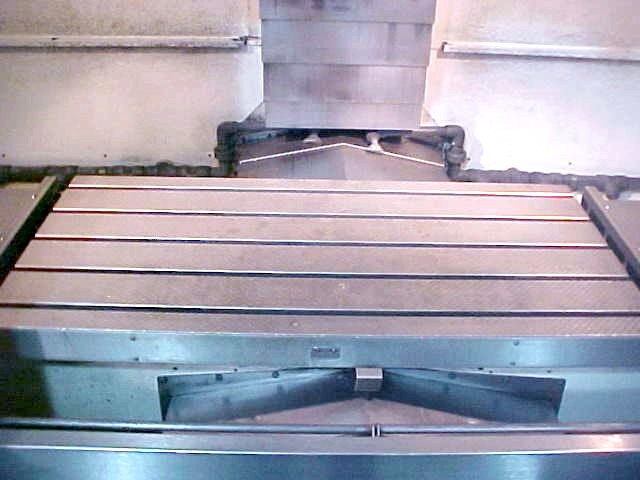

TABLE SIZE53.5" x 25"
MAXIMUM TABLE LOAD4,250 LBS
SPINDLE NOSE TO TABLE TOP4" - 36"
X AXIS TRAVEL45"
Y AXIS TRAVEL25"
Z AXIS TRAVEL24"
RAPID TRAVERSE RATE X & Y AXES1000 IPM
RAPID TRAVERSE RATE Z AXES700 IPM
CUTTING FEED RATE0.01 - 400 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS0 - 10,000 RPM
SPINDLE MOTOR30 HP

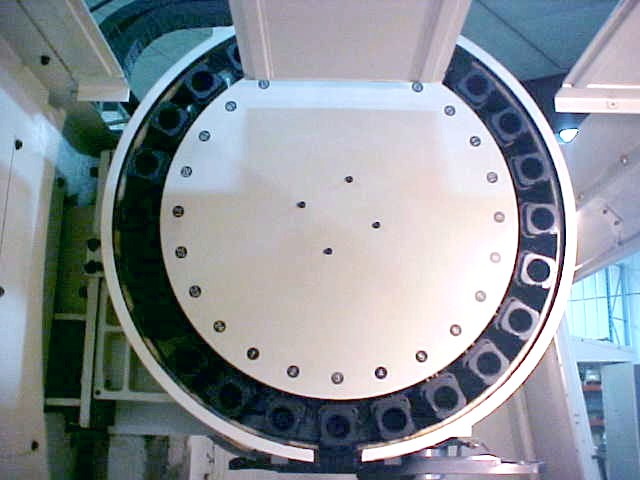

TOOL CHANGER CAPACITY (SIDE-ARM)24 STATIONS
TOOL CHANGE TIME (TOOL TO TOOL)1.9 SECONDS
MAXIMUM TOOL WEIGHT15 LBS
MACHINE WEIGHT15,750 LBS
APPROXIMATE DIMENSIONS131" x 102" x 105"

Equipped With:

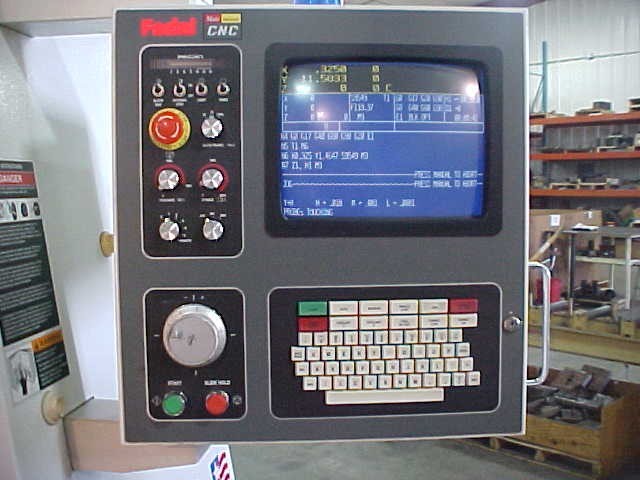

FADAL MP CNC CONTROL WITH 14" COLOR CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

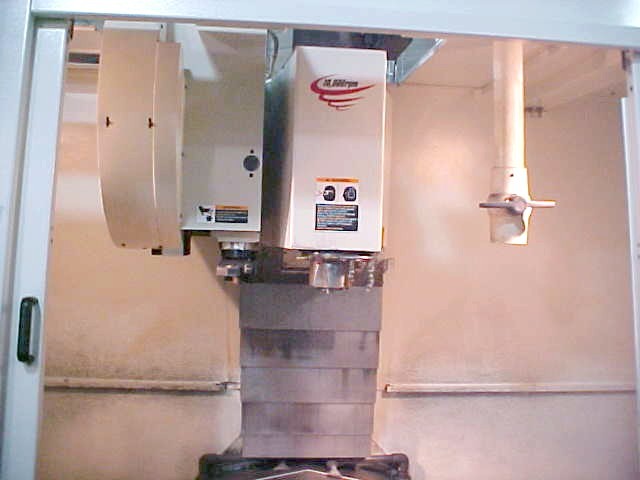

VERY HIGH TORQUE SPINDLE (30HP / 270 FT-LBS)
8 MEG MEM UPGRADE, REMOTE JOG HANDLE
CHIP REMOVAL AUGER WITH COOLANT WASHDOWN
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS

SEE PHOTOS ATTACHED AND WEBSITE FOR MORE: www.MWMachinery.com
