CNC VERTICAL MACHINING CENTERS: MORI SEIKI MV-55 /50 CNC MILL, 40 x 22 x 22, 50 TAPER, 15 HP, 3500 RPM, 4TH AXIS ROTARY TABLE, '86 (4478)

MORI SEIKI MV-55 /50 CNC MILL, 40 x 22 x 22, 50 TAPER, 15 HP, 3500 RPM, 4TH AXIS ROTARY TABLE, '86 (4478)

Stock Number: 4478

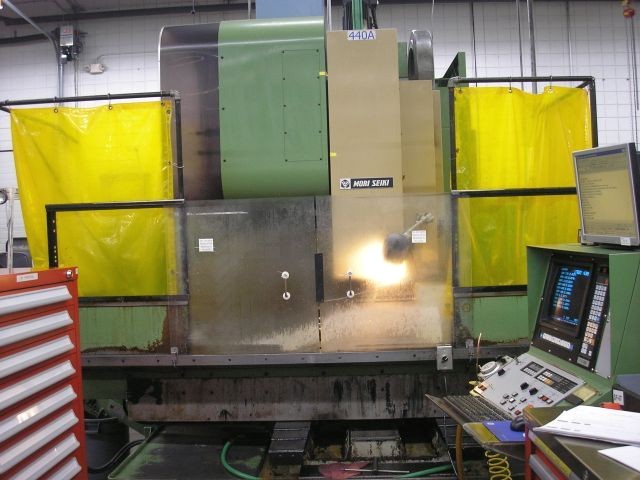

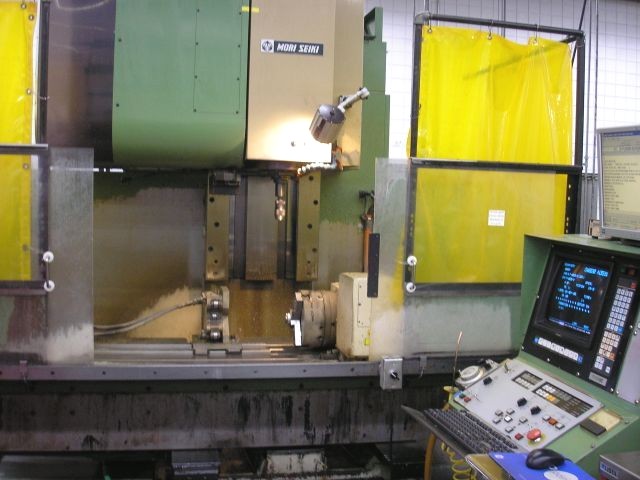

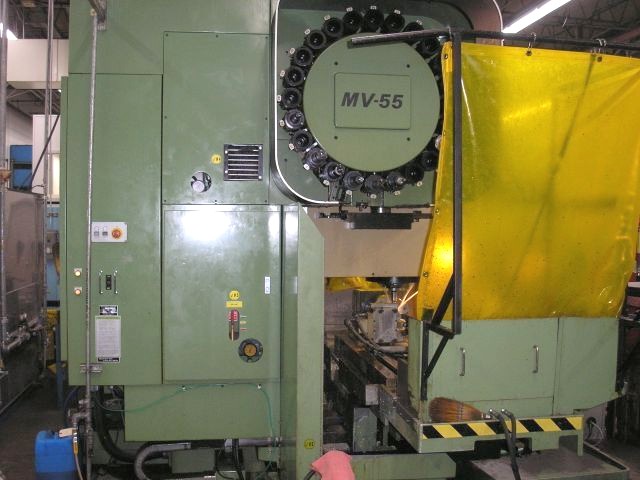

CNC VERTICAL MACHINING CENTERS: MORI SEIKI MV-55 /50 CNC MILL, 40 x 22 x 22, 50 TAPER, 15 HP, 3500 RPM, 4TH AXIS ROTARY TABLE, '86 (4478), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI MV-55 /50 CNC MILL, 40 x 22 x 22, 50 TAPER, 15 HP, 3500 RPM, 4TH AXIS ROTARY TABLE, '86 (4478), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: MORI SEIKI MV-55 /50 CNC MILL, 40 x 22 x 22, 50 TAPER, 15 HP, 3500 RPM, 4TH AXIS ROTARY TABLE, '86 (4478), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4478 CNC VERTICAL MACHINING CENTERS: MORI SEIKI MV-55 /50 CNC MILL, 40 x 22 x 22, 50 TAPER, 15 HP, 3500 RPM, 4TH AXIS ROTARY TABLE, '86 (4478)Request a quote on stock# 4478
SpecificationDescription
DATE OF MANUFACTURE1985
INSTALLED NEW (SINGLE OWNER)1986
TABLE SIZE55" x 21.7"
MAXIMUM TABLE LOAD2,500 LBS
SPINDLE NOSE TO TABLE TOP7.9" - 29.9"
X AXIS TRAVEL40"
Y AXIS TRAVEL21.7"
Z AXIS TRAVEL21.7"
RAPID TRAVERSE RATE X & Y AXES590 IPM
RAPID TRAVERSE RATE Z AXIS472 IPM
CUTTING FEED RATE0.1 - 196 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS0 - 3,500 RPM
SPINDLE MOTOR (2 SPEED GEARED)15 HP
TOOL CHANGER CAPACITY24 ATC
MAXIMUM TOOL WEIGHT44 LBS
MACHINE WEIGHT19,800 LBS
APPROXIMATE DIMENSIONS134" x 142" x 118"

Equipped With:
YASNAC MX2 CNC CTRL WITH 9" COLOR CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
CONVERSATIONAL PROGRAMMING,
TSUDAKOMA 12" 4th AXIS ROTARY TABLE,
RIGID TAPPING, GEARED HEADSTOCK,
CHIP CONVEYOR,
SPINDLE CHILLER (SPINDLE OIL/LUBE COOLING SYSTEM),
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
TABLE ENCLOSED GUARDING, ALL AVAILABLE MANUALS
*RIGID BOX WAY CONSTRUCTION*
**PREFORMING PRECISE AEROSPACE WORK**
***PASSES YEARLY LASER & BALL BAR QUALIFICATIONS***
