CNC VERTICAL MACHINING CENTERS: DAHLIH MCV 2100 CNC MILL, FANUC 21iMB CNC, 83 x 33 x 30, 25 HP, 6,000 RPM, '06 (4491)

DAHLIH MCV 2100 CNC MILL, FANUC 21iMB CNC, 83 x 33 x 30, 25 HP, 6,000 RPM, '06 (4491)

Stock Number: 4491

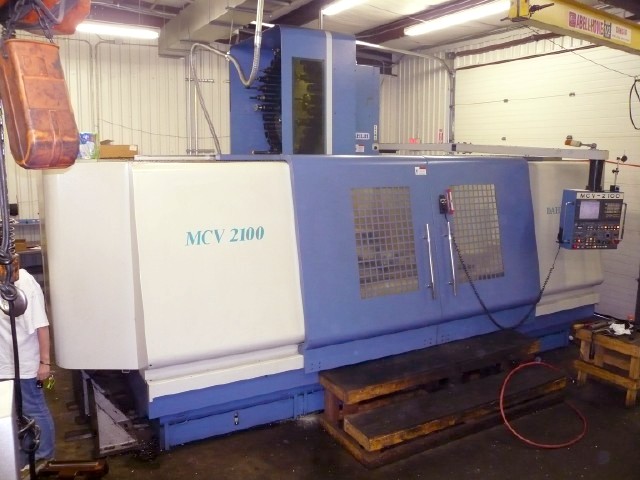

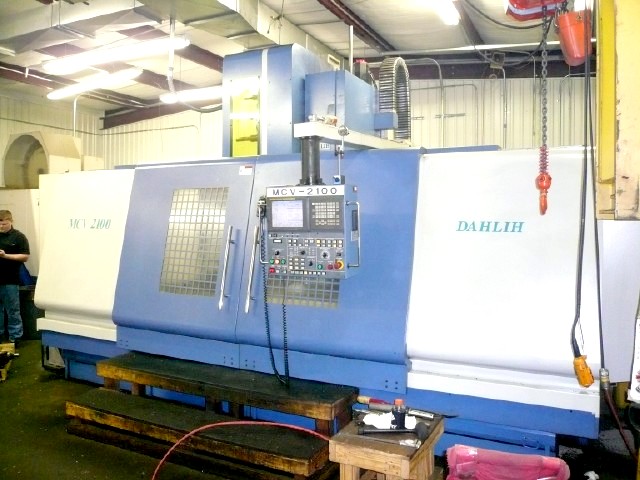

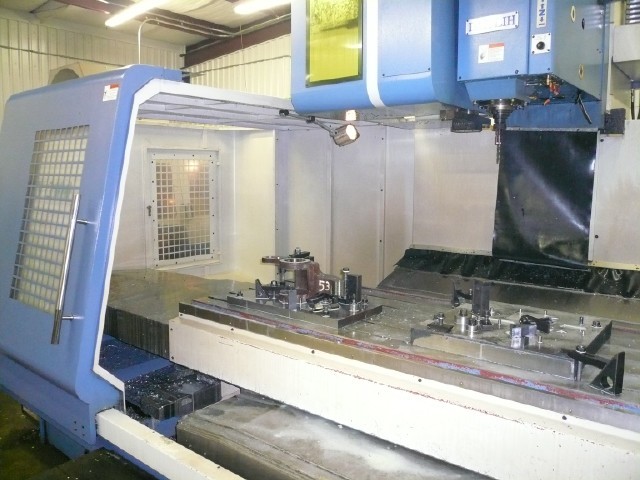

CNC VERTICAL MACHINING CENTERS: DAHLIH MCV 2100 CNC MILL, FANUC 21iMB CNC, 83 x 33 x 30, 25 HP, 6,000 RPM, '06 (4491), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DAHLIH MCV 2100 CNC MILL, FANUC 21iMB CNC, 83 x 33 x 30, 25 HP, 6,000 RPM, '06 (4491), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DAHLIH MCV 2100 CNC MILL, FANUC 21iMB CNC, 83 x 33 x 30, 25 HP, 6,000 RPM, '06 (4491), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: DAHLIH MCV 2100 CNC MILL, FANUC 21iMB CNC, 83 x 33 x 30, 25 HP, 6,000 RPM, '06 (4491), Click to view larger photo...
Click to view larger photo

Request A Quote On Our Stock Number: 4491 CNC VERTICAL MACHINING CENTERS: DAHLIH MCV 2100 CNC MILL, FANUC 21iMB CNC, 83 x 33 x 30, 25 HP, 6,000 RPM, '06 (4491)Request a quote on stock# 4491
SpecificationDescription
NEW APPROXIMATELY2006
TABLE SIZE90.6" x 38.2"
MAXIMUM PALLET LOAD6,600 LBS
SPINDLE NOSE TO PALLET TOP7.8" - 37.8"
X AXIS TRAVEL82.7"
Y AXIS TRAVEL33.5"
Z AXIS TRAVEL29.9"
RAPID TRAVERSE RATE X/Y/Z/ AXES394 IPM
CUTTING FEEDRATE0.04 - 393 IPM
SPINDLE TAPERCAT 50
SPINDLE SPEEDS35 - 6,000 RPM
SPINDLE MOTOR25 HP
TOOL STORAGE CAPACITY32
MAXIMUM TOOL WEIGHT33 LBS
MAXIMUM TOOL LENGTH13.8"
MACHINE WEIGHT39,600 LBS
APPROXIMATE DIMENSIONS304" x 185" x 144"

Equipped With:

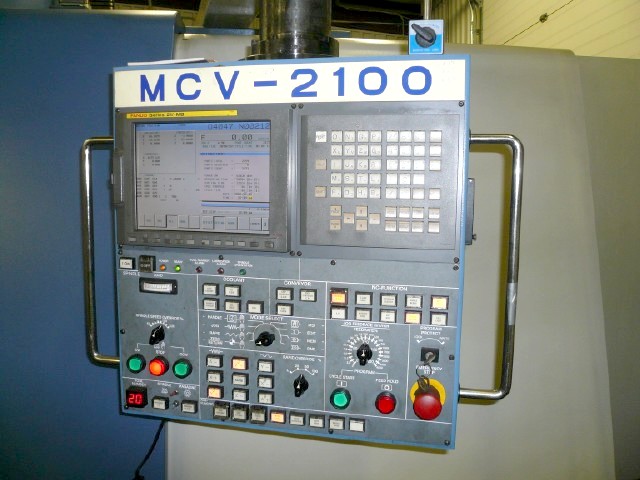

FANUC 21iMB CNC CONTROL WITH CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
COOLANT THRU SPINDLE,
HELICAL INTERPOLATION, RIGID TAPPING
SIDE MOUNT ATC, ALL BOX WAY CONSTRUCTION
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE MANUALS
