CNC VERTICAL MACHINING CENTERS: HAAS TM-2 CNC TOOLROOM MILL, 40 x 16 x 16, 4000 RPM, AUTO. TOOL CHANGER, MINT, '05 (4615)

HAAS TM-2 CNC TOOLROOM MILL, 40 x 16 x 16, 4000 RPM, AUTO. TOOL CHANGER, MINT, '05 (4615)

Stock Number: 4615

CNC VERTICAL MACHINING CENTERS: HAAS TM-2 CNC TOOLROOM MILL, 40 x 16 x 16, 4000 RPM, AUTO. TOOL CHANGER, MINT, '05 (4615), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS TM-2 CNC TOOLROOM MILL, 40 x 16 x 16, 4000 RPM, AUTO. TOOL CHANGER, MINT, '05 (4615), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS TM-2 CNC TOOLROOM MILL, 40 x 16 x 16, 4000 RPM, AUTO. TOOL CHANGER, MINT, '05 (4615), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS TM-2 CNC TOOLROOM MILL, 40 x 16 x 16, 4000 RPM, AUTO. TOOL CHANGER, MINT, '05 (4615), Click to view larger photo...       CNC VERTICAL MACHINING CENTERS: HAAS TM-2 CNC TOOLROOM MILL, 40 x 16 x 16, 4000 RPM, AUTO. TOOL CHANGER, MINT, '05 (4615), Click to view larger photo...

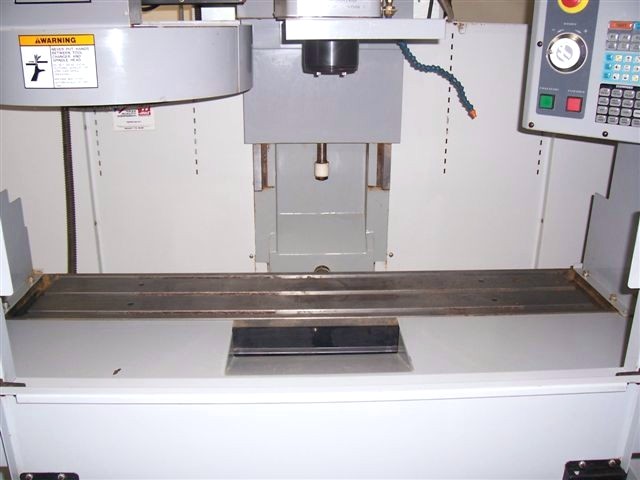

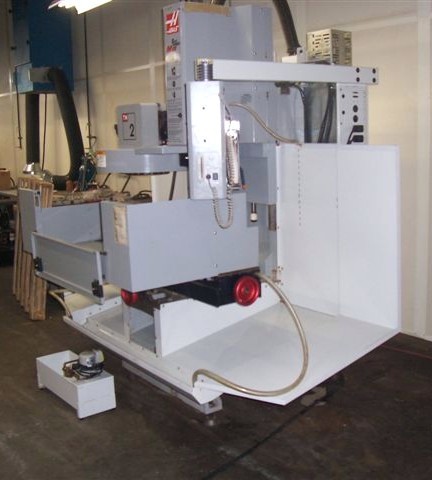

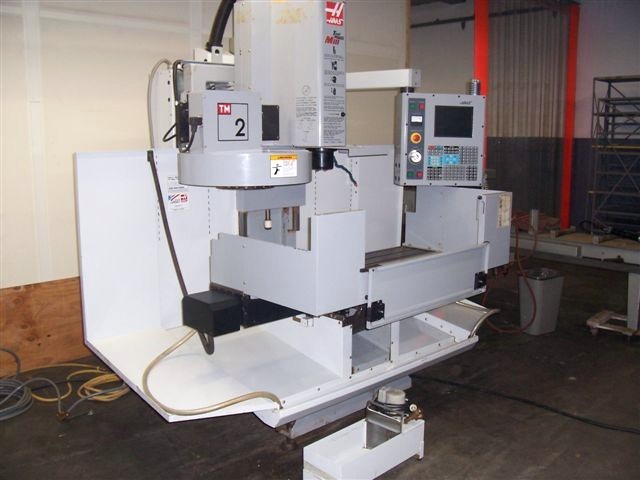

Click to view larger photo

Request A Quote On Our Stock Number: 4615 CNC VERTICAL MACHINING CENTERS: HAAS TM-2 CNC TOOLROOM MILL, 40 x 16 x 16, 4000 RPM, AUTO. TOOL CHANGER, MINT, '05 (4615)Request a quote on stock# 4615
SpecificationDescription
DATE OF MANUFACTURE2005
TABLE SIZE47.75" x 10.5"
MAX. TABLE LOAD (EVENLY DISTRIB.)1000 LBS
SPINDLE NOSE TO TABLE TOP4" - 20"
X AXIS TRAVEL40"
Y AXIS TRAVEL16"
Z AXIS TRAVEL16"
RAPID TRAVERSE RATE X, Y & Z AXES200 IPM
CUTTING FEED RATE0.1 - 200 IPM
SPINDLE TAPERCAT 40
AUTOMATIC TOOL CHANGER20 STATIONS
SPINDLE SPEEDS0 - 4,000 RPM
SPINDLE MOTOR (PEAK RATING)7.5 HP
MAXIMUM TOOL WEIGHT12 LBS
MACHINE WEIGHT, APPROX.4,000 LBS
DIMENSIONS, APPROX.96" x 70" x 104"

Equipped With:
HAAS CNC CONTROL WITH 12" MONITOR,
RS-232C PORT INTERFACE FOR DNC OPERATION,
WITH OPTIONAL 20-STATION TOOL CHANGER,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),
COOLANT PUMP KIT, FLOPPY DRIVE,
VISUAL QUICK CODE PROGRAMMING,
ALL AVAILABLE MANUALS
***MACHINE CAN BE USED AS CNC OR MANUAL MODE (HANDWHEEL OPERATION ON X & Y AXIS)***
