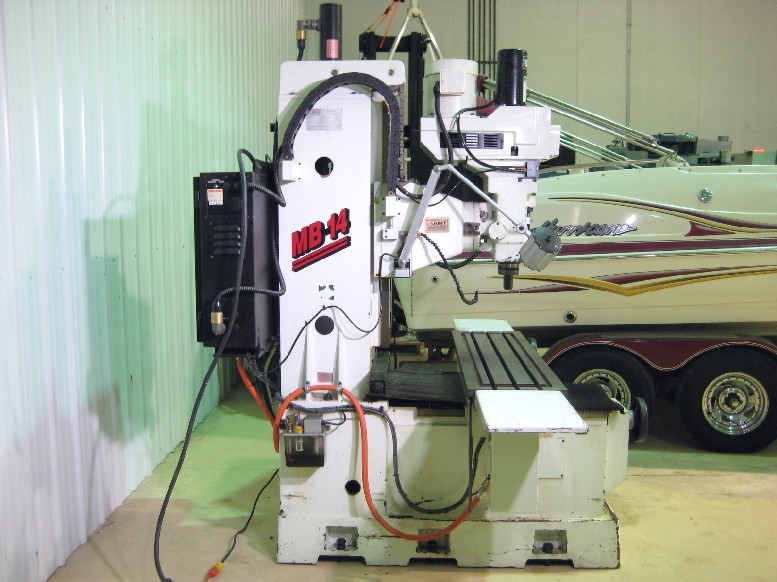

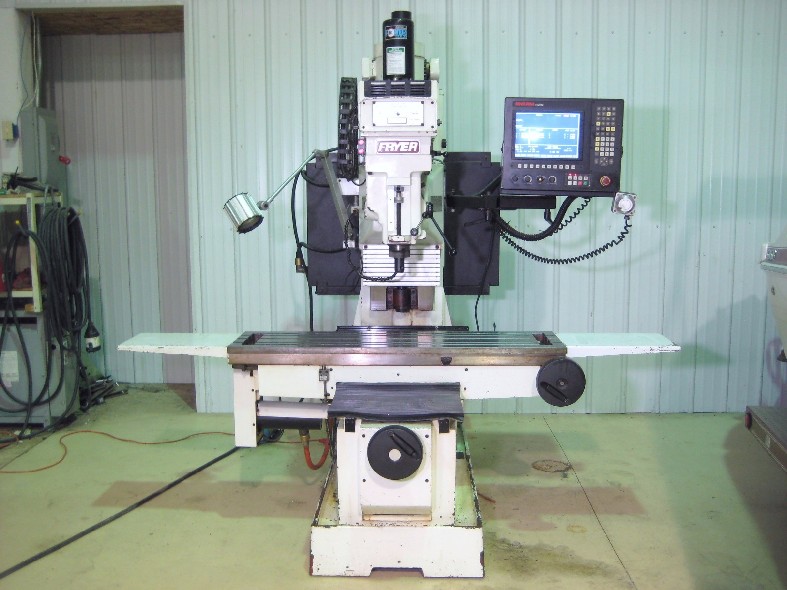

FRYER MB-14 CNC BED MILL, 40 x 20 x 21, CAT 40, 4200 RPM, ANILAM 1400 M

FRYER MB-14 CNC BED MILL, 40 x 20 x 21, CAT 40, 4200 RPM, ANILAM 1400 M

Stock Number: 4801


Click to view larger photo

Request A Quote On Our Stock Number: 4801 FRYER MB-14 CNC BED MILL, 40 x 20 x 21, CAT 40, 4200 RPM, ANILAM 1400 MRequest a quote on stock# 4801
SpecificationDescription
MFG DATE1998

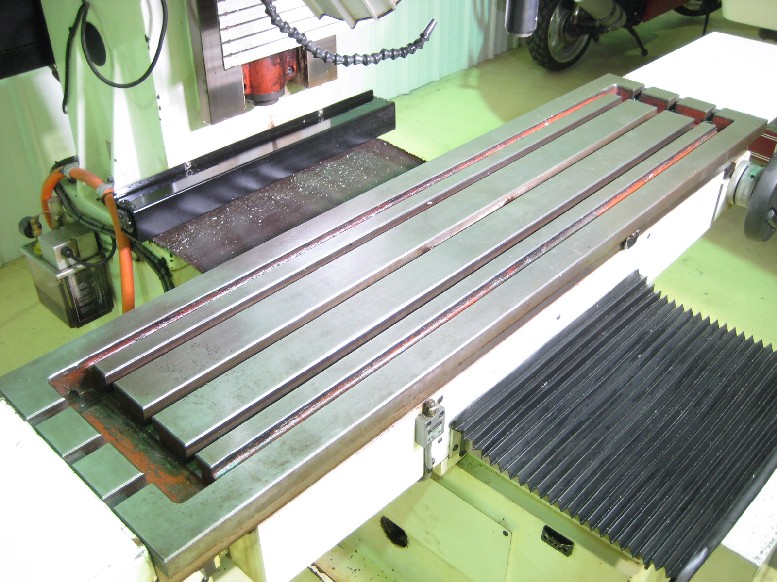

TABLE SIZE54" x 14"
MAXIMUM TABLE LOAD1,650 LBS
SPINDLE NOSE TO TABLE TOP4" - 26"
X AXIS TRAVEL40"
Y AXIS TRAVEL20"
Z AXIS TRAVEL21"
RAPID TRAVERSE RATE X & Y,& Z AXES200 IPM
CUTTING FEED RATE0.01 - 200 IPM
SPINDLE TAPERCAT 40
SPINDLE SPEEDS60 - 4,200 RPM
SPINDLE MOTOR5 HP
WEIGHT, APPROX.5,600 LBS
DIMENSIONS, APPROX.82"L x 75"W x 95"H

Equipped With:

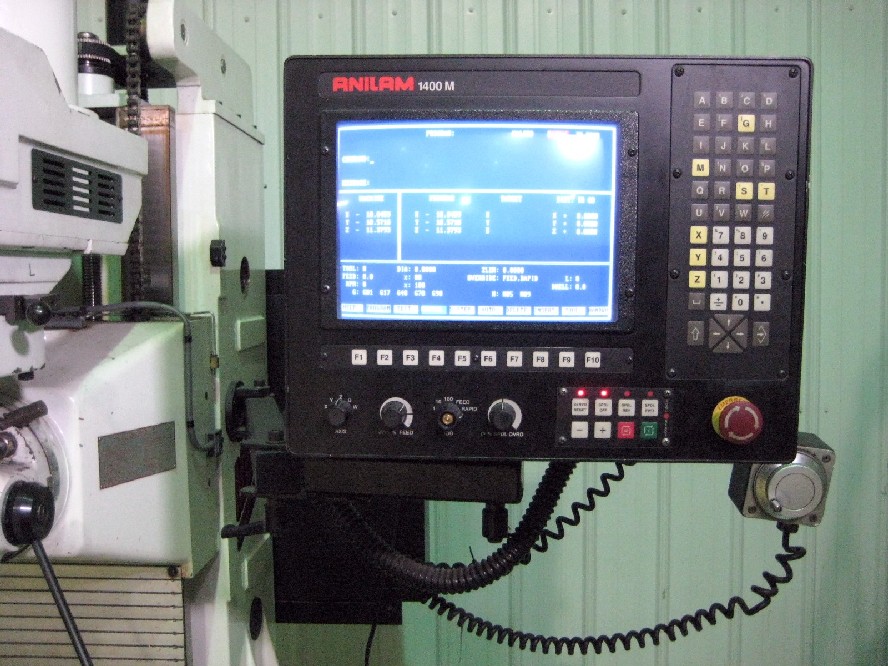

ANILAM 1400 M CNC CTRL (CONVERSATIONAL PROGRAMMING & G&M CODES),
RS232 COMMUNICATIONS PORT & FLOPPY DISC DRIVE,
REMOTE JOG HANDLE,
KURT POWER DRAWBAR,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
PROGRAMMABLE SPINDLE SPEEDS,
ROTATING HEAD: +/- 90,
AUTOMATIC LUBRICATION SYSTEM,
LEFT & RIGHT 19" TABLE EXTENSIONS
*All Axis & Spindle Sounds Nice*
**MANUAL OPERATION AVAILABLE FOR X, Y, AND QUILL**
****MADE IN THE USA****
**VIDEO AVAILABLE UPON REQUEST**
