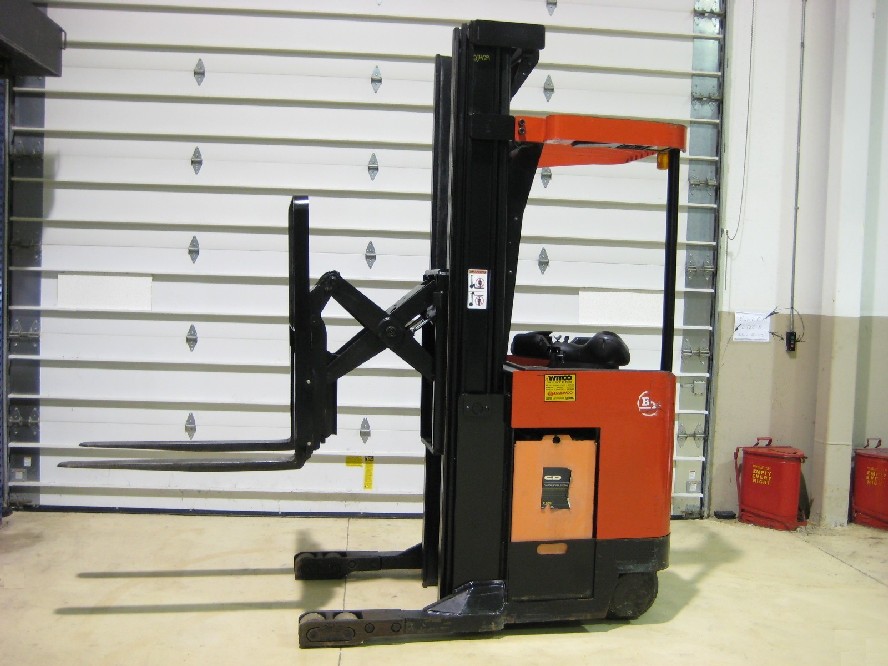

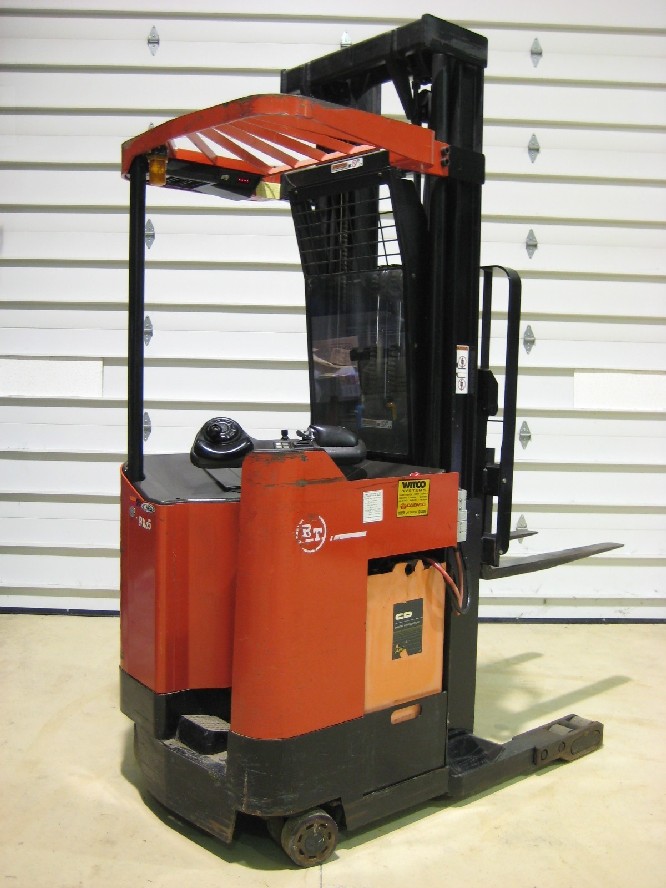

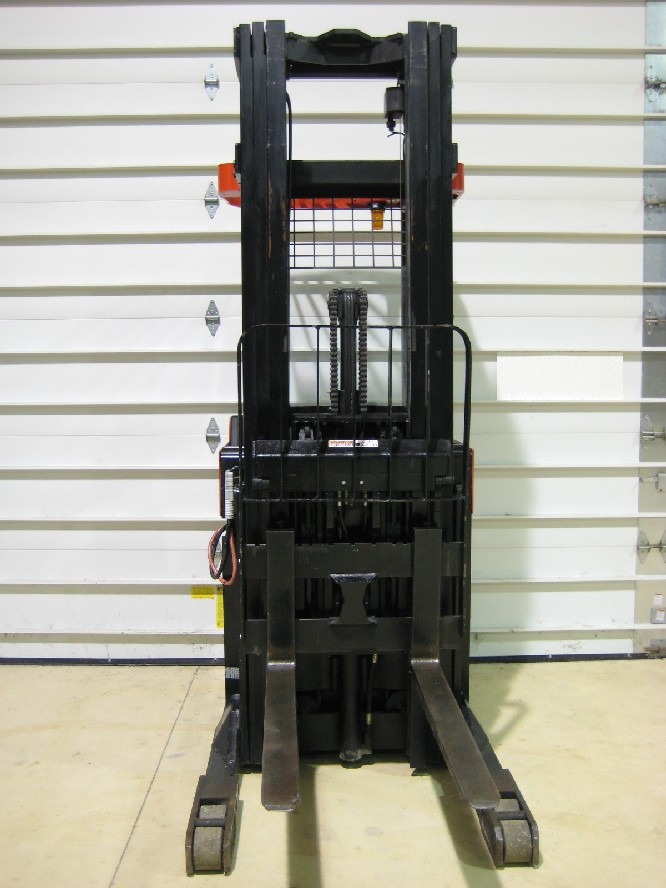

3500 LB, B T PRIME MOVER ELECTRIC FORKLIFT TRUCK, 249 IN. LIFT, SCISSOR REACH & TILT FORK, 36 VOLT WITH CHARGER, UP,2000
Stock Number: 4674
Click to view larger photo
Request a quote on stock# 4674
| Specification | Description |
|---|
| MFG DATE | 2000 |
| LIFT CAPACITY | 3,500 LBS |

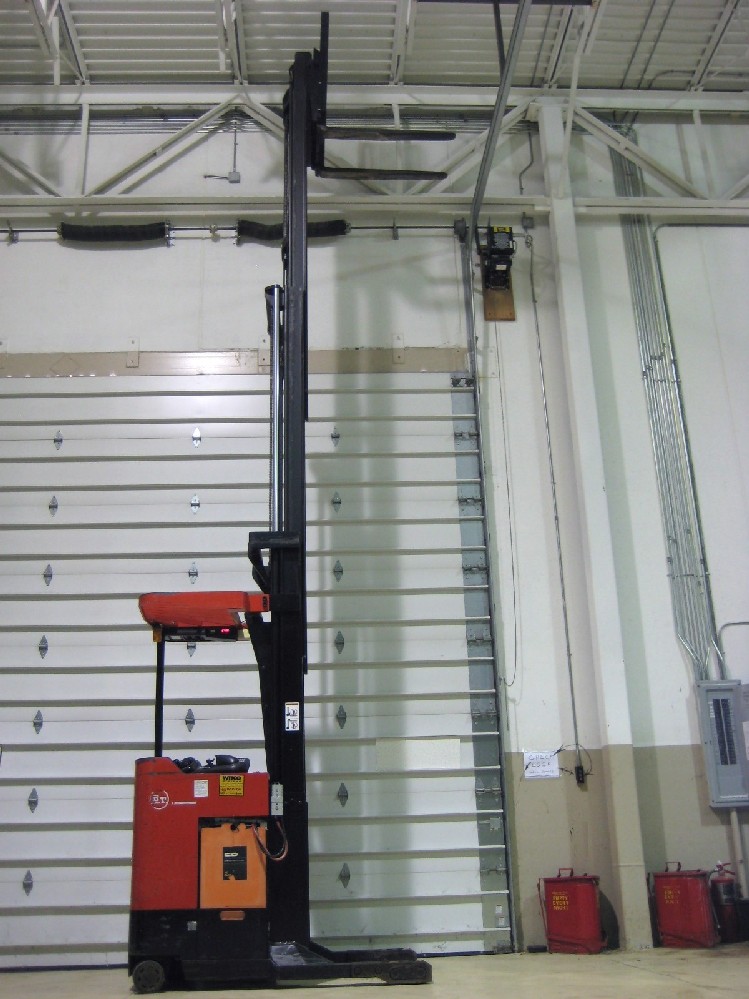

| FORK HEIGHT, MAX. | 249" |
| MAST LOWERED HEIGHT | 112" |
| FORK SIZE | 42" x 4" x 2" |
| FORK REACH (SCISSOR OUT/IN) | 24" max. |
| FORK TILT RANGE | -3 DEG. / +4 DEG. |
| CARRAIGE WIDTH (FORK SPREAD) | 31" |
| MAST STAGES | 3 |
| POWER | 36 VOLTS |
| TRAVEL SPEED, VARIABLE | 6 MPH max. |
| LIFT SPEED, VARIABLE | 10-80 FPM |
| LOWERING SPEED, VARIABLE | 10-80 FPM |
| CHASSIS WIDTH | 40.5" |
| WEIGHT, APPROX. | 7710 LBS |
| DIMENSIONS, APPROX. | 72"L x 41"W x 112"H |
| SERIAL NO. | 00I121122493F |
Equipped With:

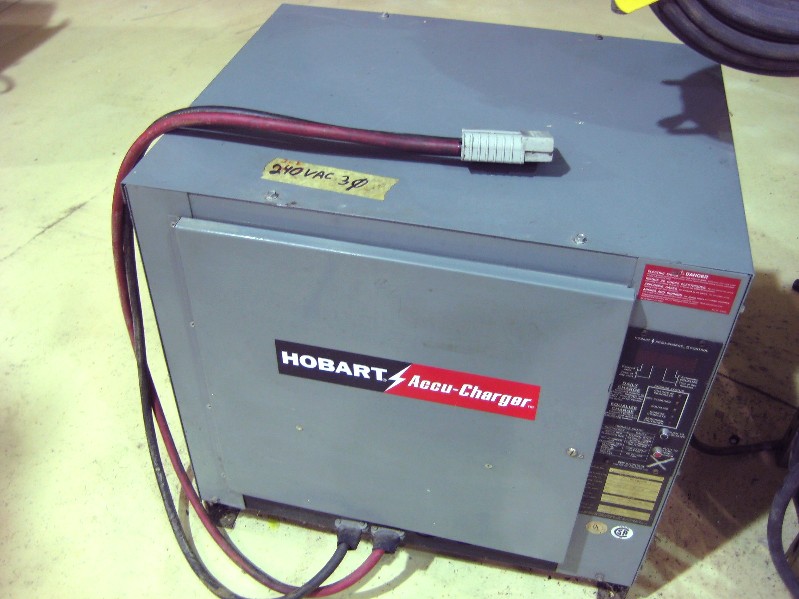

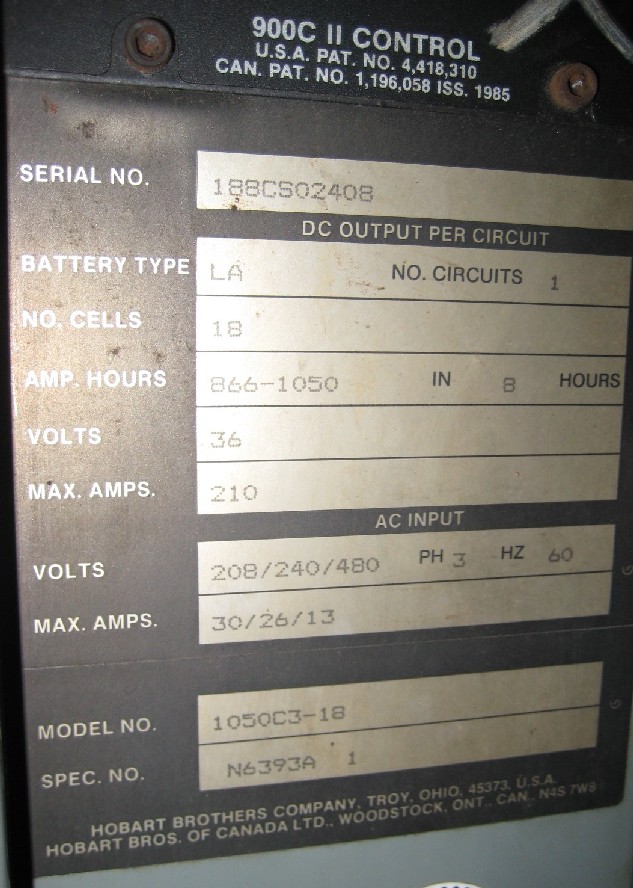

HOBART ACCU-CHARGER II w/DIGITAL DISPLAY,
TRIPLE MAST, EXTRA-HIGH LIFT, FORK TILT,

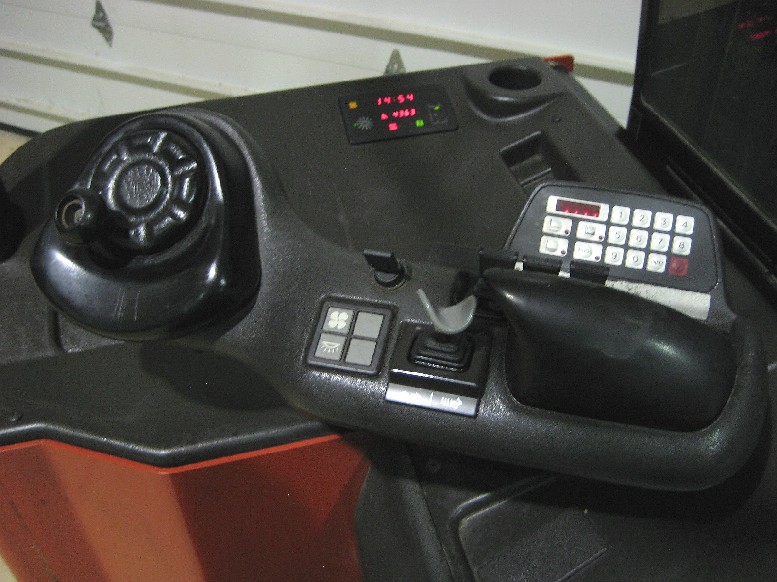

NEW TYPE HAND/FINGER DIGITAL CONTROLS,
PROGRAMMABLE PRE-SET HIGHT CONTROL,
SAFETY GLASS WINDSHIELD,
SAFETY FOOT BRAKE, EMERGENCY STOP SWITCH,
SAFETY CAGE w/LIGHTS & BEACON,
SCISSOR FORK REACH, CABIN FAN & LIGHT,
PROGRESSIVE SINGLE HAND STEERING WHEEL,
DIRECTIONAL CONTROL INDICATOR,

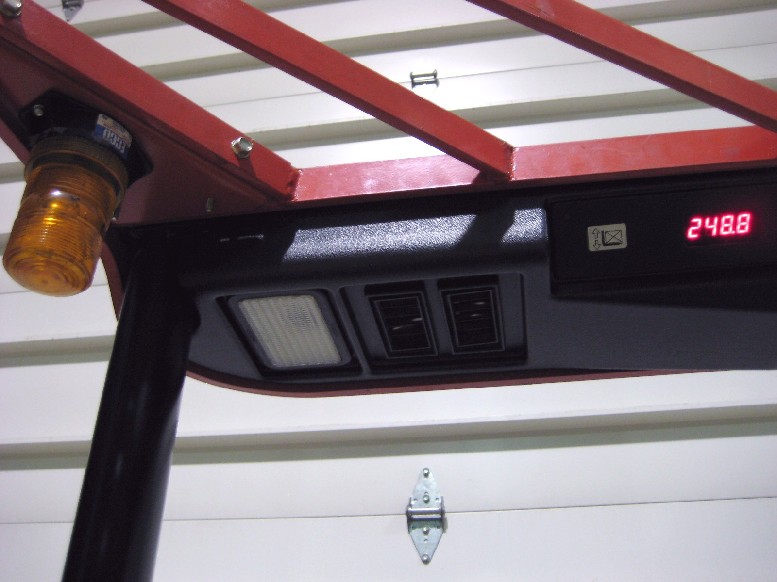

DIGITAL HEIGHT INDICATOR, VARI-SPEED CTRL,
OWNER'S, ELECTRICAL, AND REPAIR MANUALS,
HARD TIRES IN VERY GOOD CONDITION,
36V BATTERY IN VERY GOOD CONDITION
