IEMCA CNC BOSS 542 /37 BAR FEEDER / LOADER, 12 FT BAR LENGTH, 1.65 in. CAPACITY, MAGAZINE, HYDRAULIC, AIR, LATHE

IEMCA CNC BOSS 542 /37 BAR FEEDER / LOADER, 12 FT BAR LENGTH, 1.65 in. CAPACITY, MAGAZINE, HYDRAULIC, AIR, LATHE

Stock Number: 4855


Click to view larger photo

Request A Quote On Our Stock Number: 4855 IEMCA CNC BOSS 542 /37 BAR FEEDER / LOADER, 12 FT BAR LENGTH, 1.65 in. CAPACITY, MAGAZINE, HYDRAULIC, AIR, LATHERequest a quote on stock# 4855
SpecificationDescription
BARSTOCK DIAMETER (ROUND)5mm - 42mm (3/16" to 1-5/8")
BARSTOCK LENGTH, MAX.147"
FEEDING SPEED1770 IPM 1770 IPM 1770 IPM
RETURN SPEED1860 IPM
LOADED MAGAZINE CAPACITY11 LINEAR INCHES
WORKING AXIS HEIGHT35" - 47" ADJUSTABLE
OPERATING VOLTAGE230V / 3 PHASE / 60Hz
TOTAL POWER REQUIRED2.7 HP (2kW, 7 AMPS)
COMPRESSED AIR REQUIRED70 - 90 PSI, 10CFM 70 - 90 PS
CONTROL VOLTAGE (DC)24V
FLOOR SPACE, APPROX.182"L x 22"W x 51H"
WEIGHT, APPROX.2200 LBS

Equipped With:

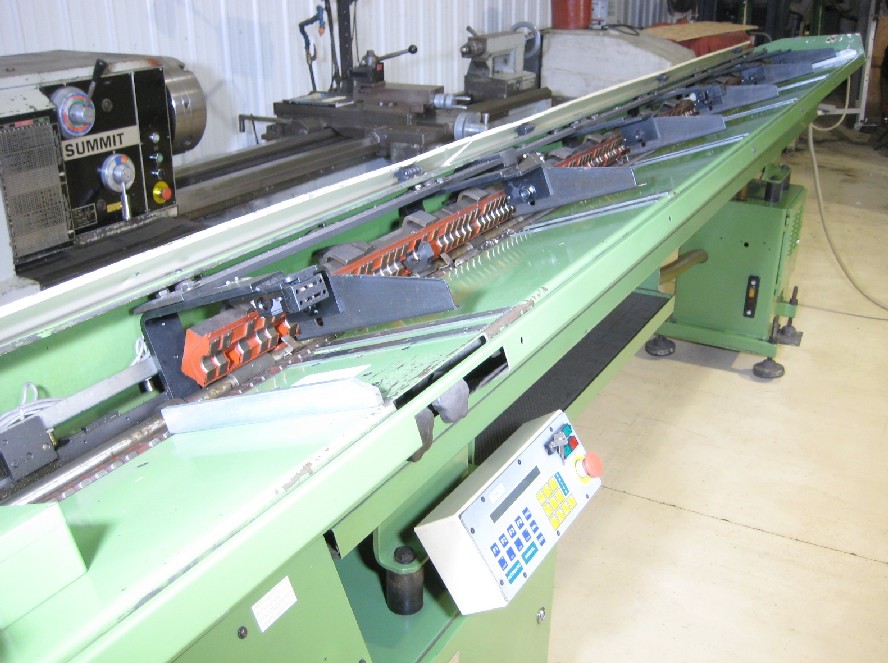

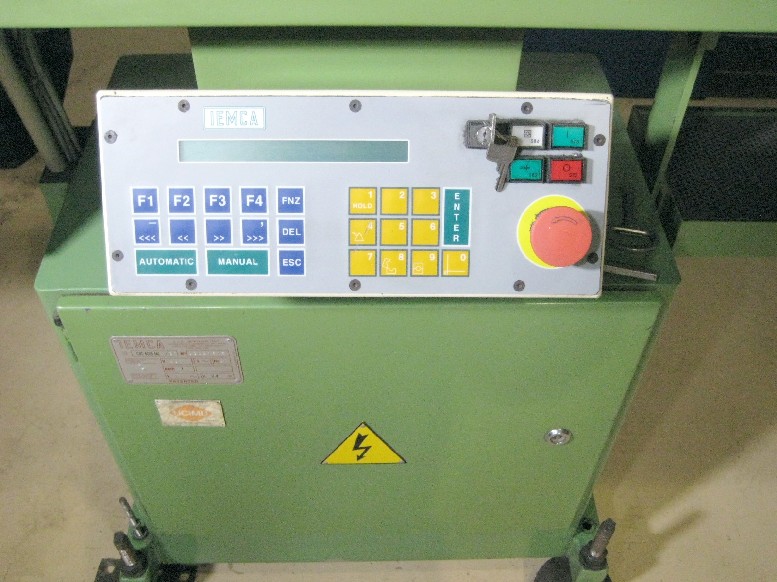

PROGRAMMABLE KEYPAD (PLC) CONTROL,
GUIDE CHANNELS, HYDRAULIC & AIR ACTUATION,
DRIVE SYSTEM CLUTCH w/THRUST ADJUSTMENT,

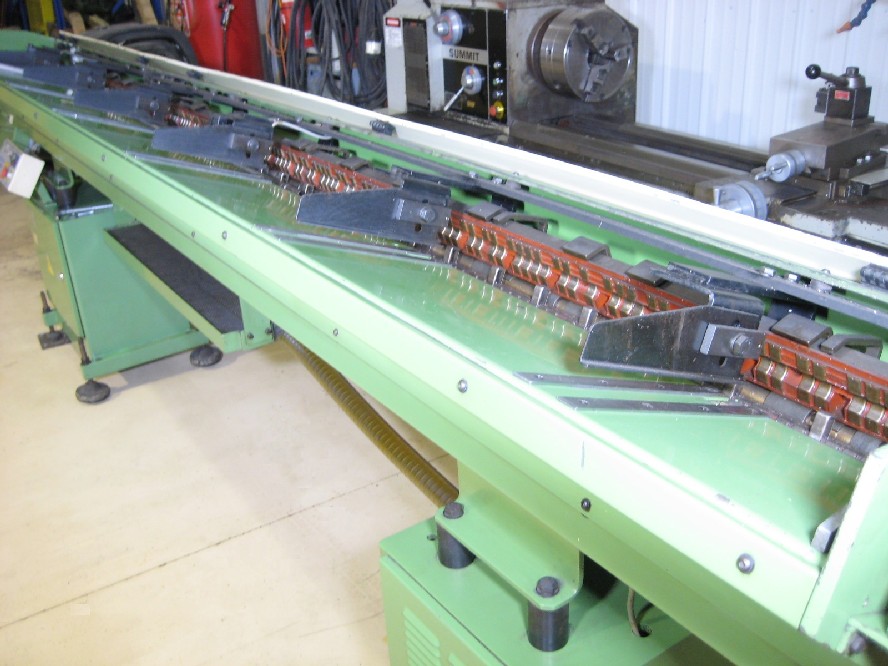

AUTO-LOADING MAGAZINE SYSTEM FOR 4'-12' BARS,
LUBRICATING PUMP & OIL RECOVERY DEVICE,

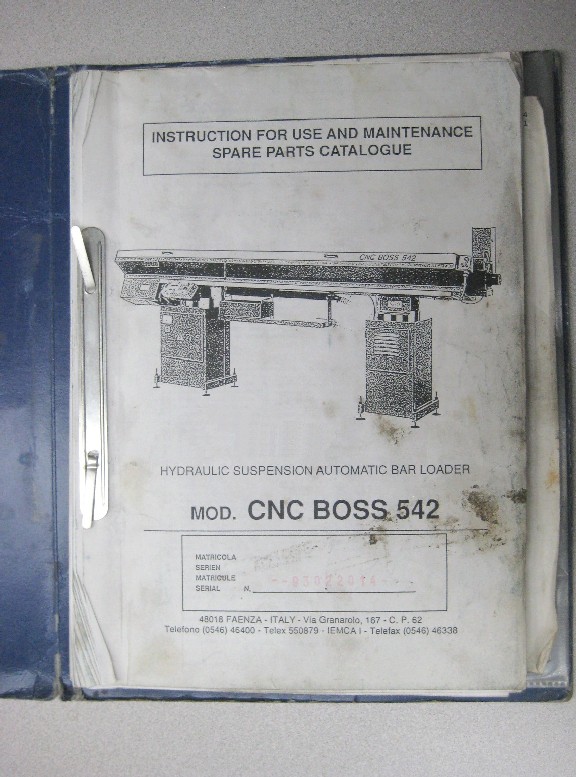

OPERATIONS, MAINTENANCE, AND PARTS MANUALS.
