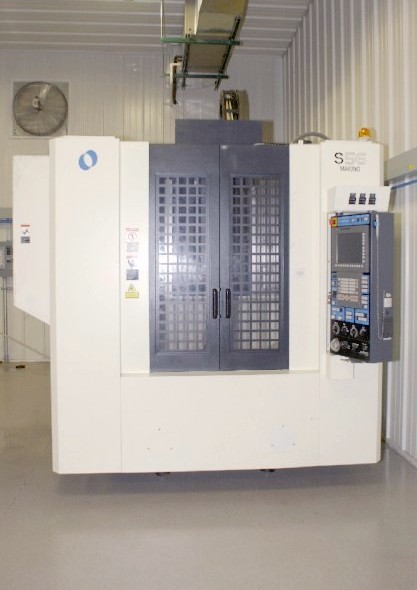

MAKINO S56 CNC MILL, FANUC PRO 5 CONTROL, 35.4 x 19.7 x 17.7, 1574 IPM RAPIDS, 20000 RPM, '06 (4576)
Stock Number: 4576
Click to view larger photo
Request a quote on stock# 4576
| Specification | Description |
|---|
| MANUFACTURED NEW | 2006 |

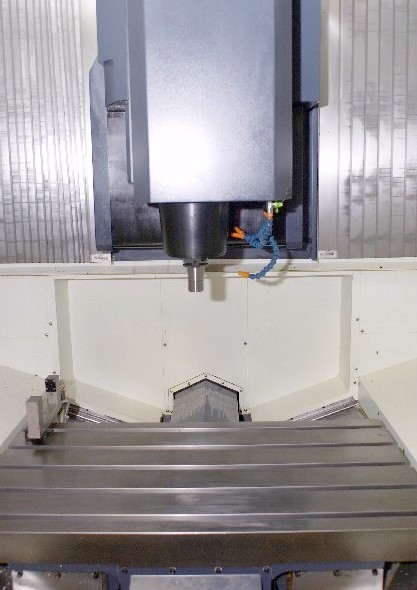

| TABLE SIZE | 39.4" x 19.7" |
| MAXIMUM TABLE LOAD | 1432 LBS |
| X AXIS TRAVEL | 35.4" |
| Y AXIS TRAVEL | 19.7" |
| Z AXIS TRAVEL | 17.7" |
| RAPID TRAVERSE RATE X, Y & Z AXES | 1574 IPM |
| CUTTING FEED RATE | 1574 IPM |
| SPINDLE TAPER | HSK63A |
| SPINDLE SPEEDS | 200 - 20,000 RPM |
| SPINDLE MOTOR | 20 HP |

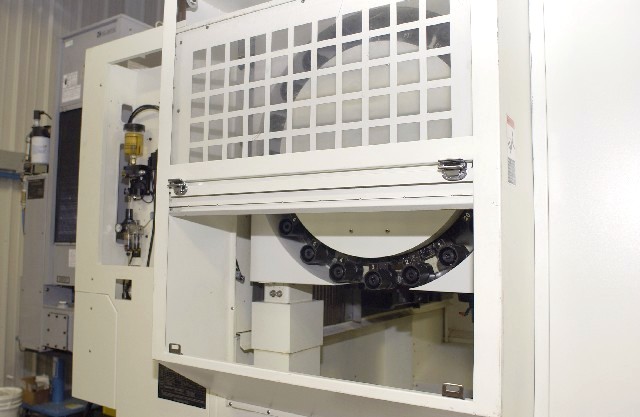

| TOOL CHANGER CAPACITY | 20 |
| POWER REQUIREMENTS | 230V, 3PH,50/60 HZ |
| WEIGHT, APPROX. | 17,000 LBS |
| DIMENSIONS, APPROX. | 101" x 135" x 120" |
Equipped With:
FANUC PROFESSIONAL 5 CNC CONTROL W/SUPER
GEOMETRIC INTELLIGENCE SGI 4 SERVO CONTROL
FOR HIGH VELOCITY 3D INTERPLATION,
INTERGAL HIGH-SPEED 20000 RPM SPINDLE,
MARPOSS LASER TYPE TOOL LENGTH MEASUREMENT SYSTEM,
HAIMER SHRINKER MACHINE (COLLET PRE-SETTER),
AUTOMATIC SPINDLE LUBERICANT TEMPERATURE CONTROLLER,
THRU-THE-TOOL AUTOMATIC AIR BLAST,
AIR DRYER BRIDGE TYPE CASTING CONSTRUCTION,

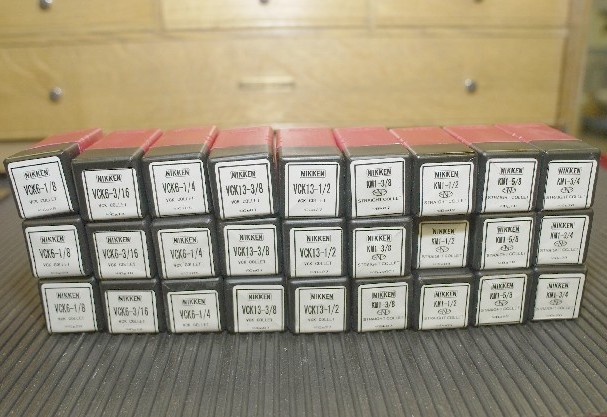

***LARGE SELECTION OF LYNDEX/ NIKKEN COLLETS,

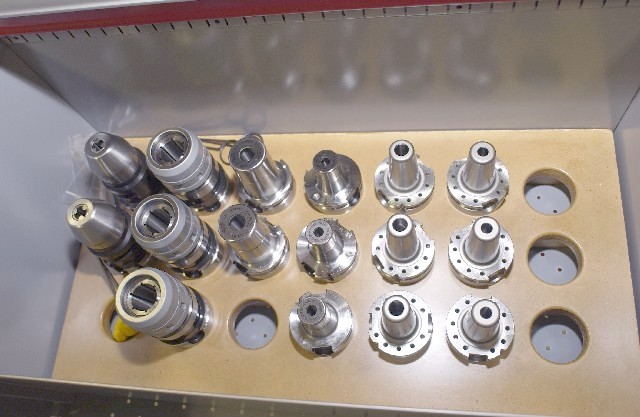

****(16) TOOL HOLDERS INCLUDED,
ALL AVAILABLE MANUALS
Midwest Machinery, Inc.
21303 Omega Circle
Franksville, WI 53126
262-895-3462
262-895-3463
[email protected]
