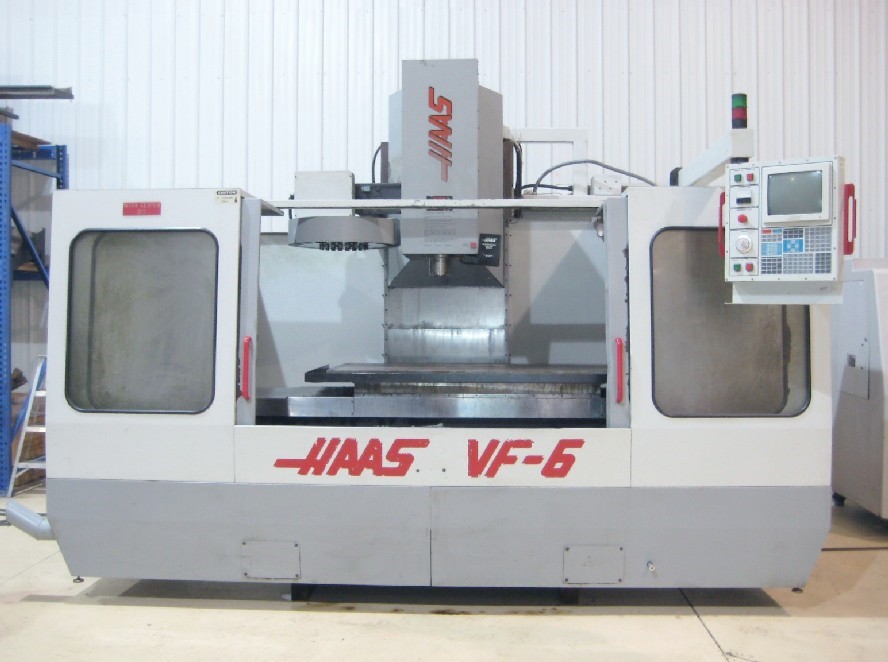

HAAS VF-6 CNC VERTICAL MILL, 64 x 32 x 32, CAT 40 TAPER, 7500 RPM GEARBOX, RIGID TAP, 1995

HAAS VF-6 CNC VERTICAL MILL, 64 x 32 x 32, CAT 40 TAPER, 7500 RPM GEARBOX, RIGID TAP, 1995

Stock Number: 4889

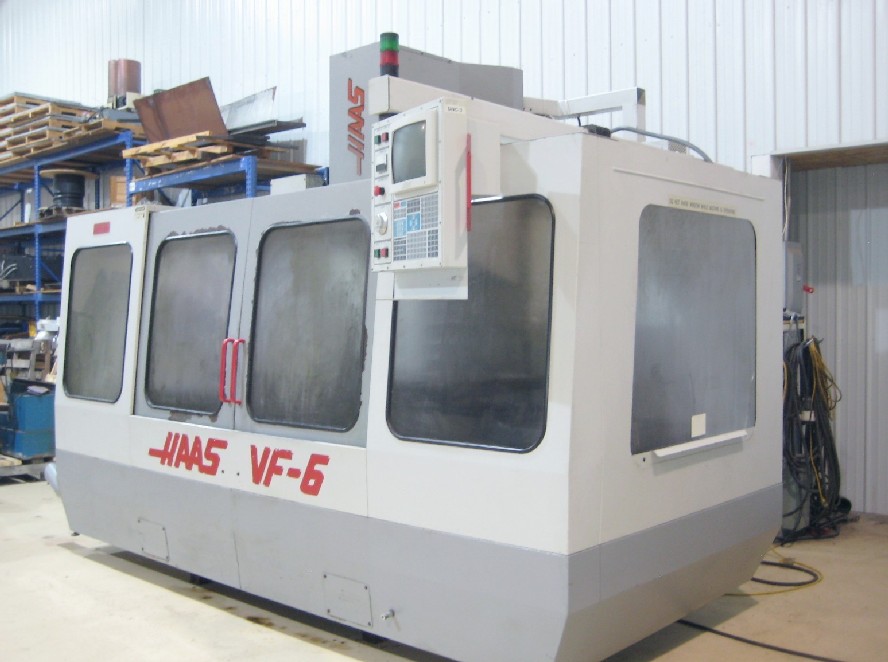

Click to view larger photo

Request A Quote On Our Stock Number: 4889 HAAS VF-6 CNC VERTICAL MILL, 64 x 32 x 32, CAT 40 TAPER, 7500 RPM GEARBOX, RIGID TAP, 1995Request a quote on stock# 4889
SpecificationDescription
MFG DATE1995

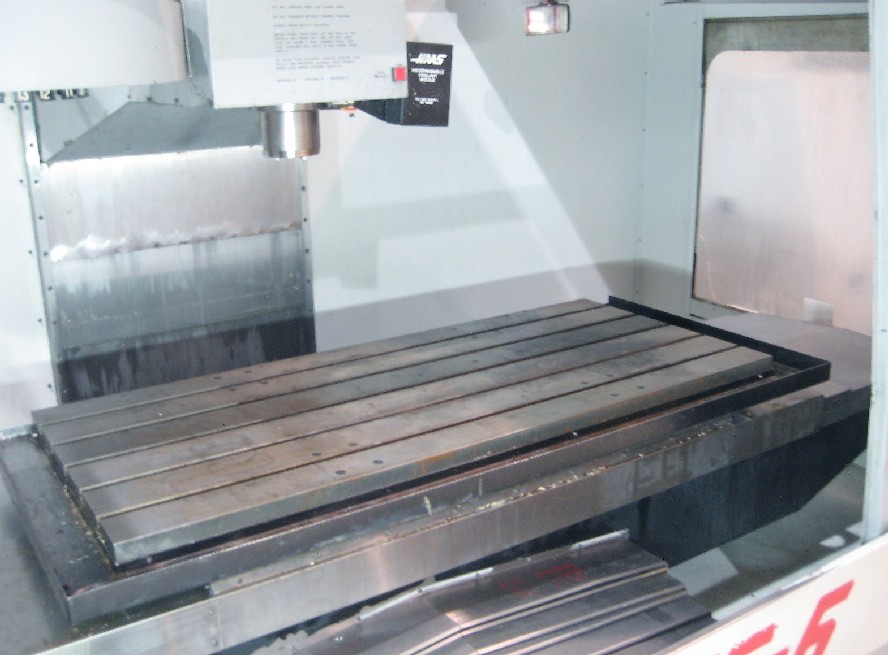

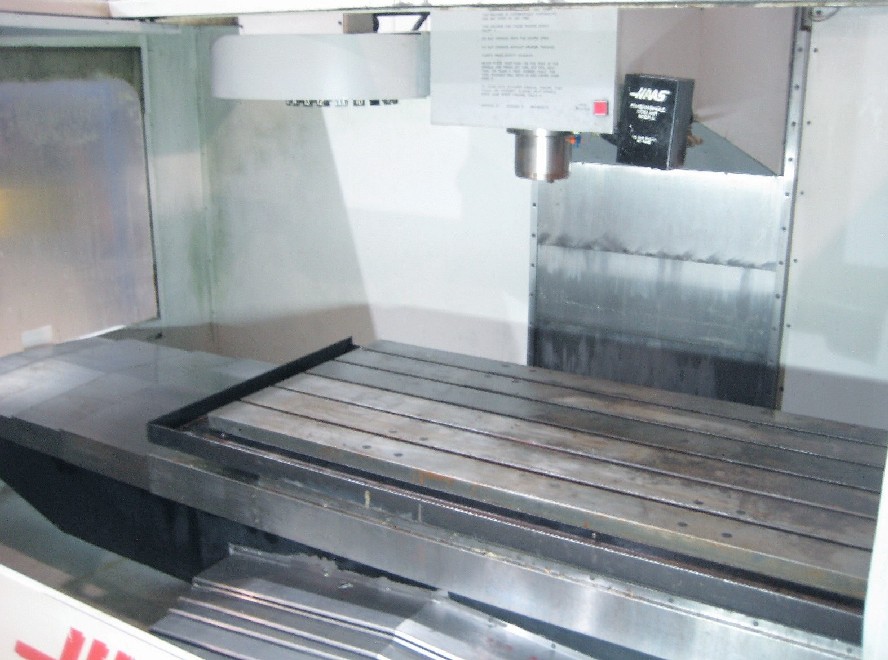

TABLE SIZE64" x 28"
MAXIMUM TABLE LOAD4,000 LBS
SPINDLE NOSE TO TABLE TOP4" - 29"
X AXIS TRAVEL64"
Y AXIS TRAVEL32"
Z AXIS TRAVEL30"
SPINDLE TAPERCAT 40
SPINDLE SPEEDS (2 SPEED GEARBOX)0 - 7,500 RPM
SPINDLE MOTOR15 HP

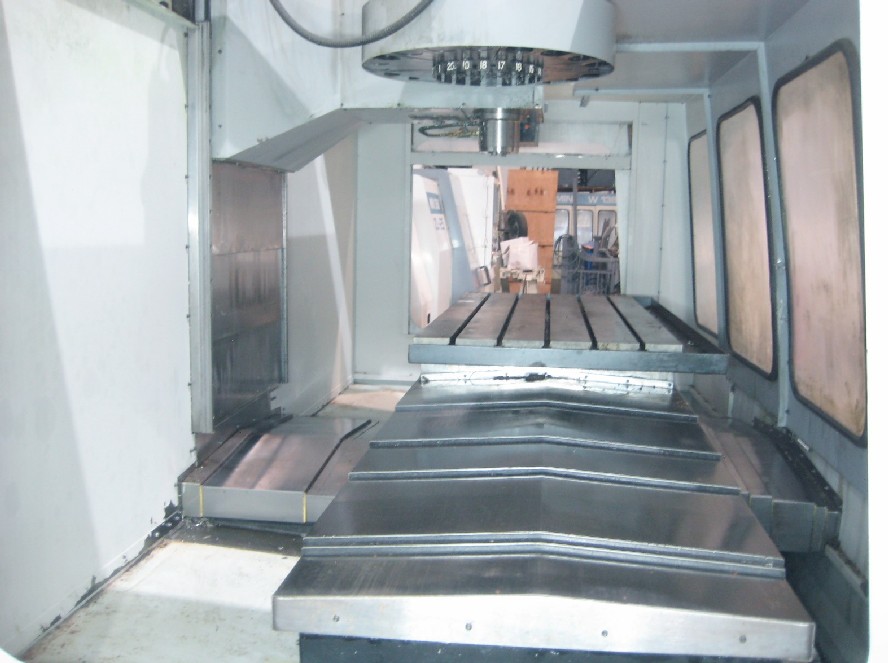

TOOL CHANGER CAPACITY20 STATION ATC
MAXIMUM TOOL WEIGHT12 LBS
RAPID TRAVERSE RATE X, Y & Z AXES500 IPM
WEIGHT, APPROX.21,500 LBS
DIMENSIONS, APPROX.150"L x 108"W x 119"H

Equipped With:

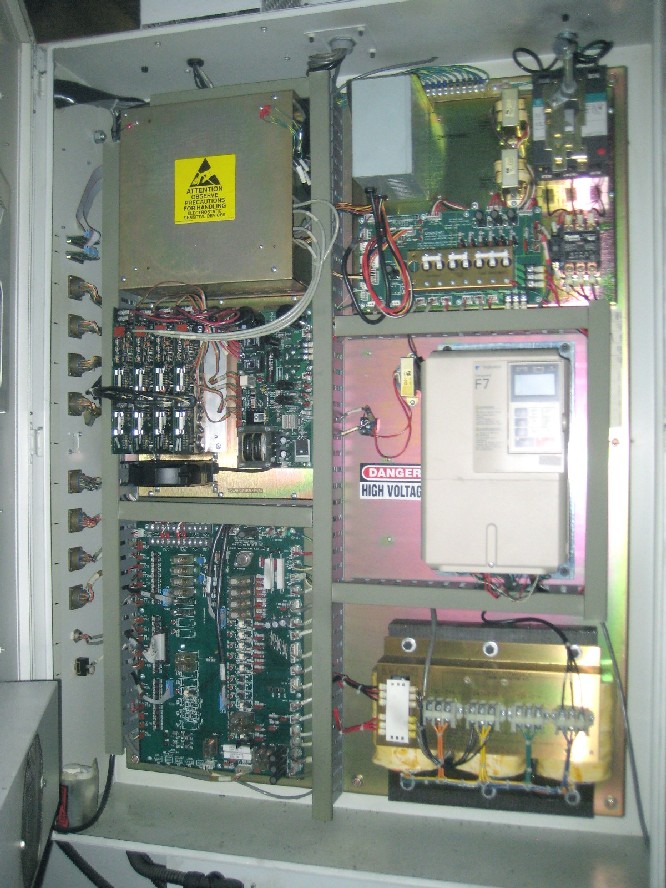

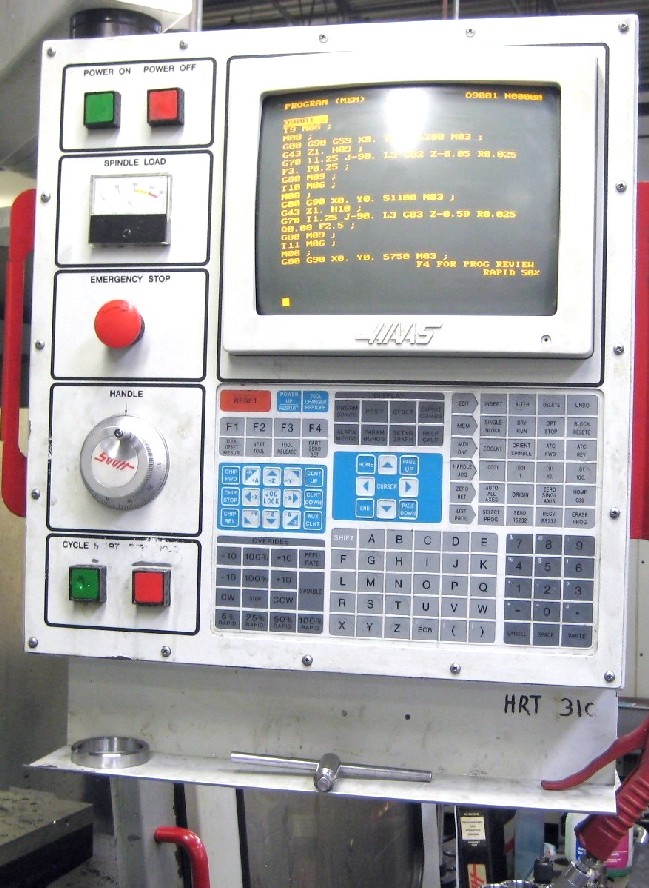

HAAS CNC CONTROL RS-232C PORT INTERFACE,
GEARBOX SPINDLE HEAD,
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING),
HAAS CHIP AUGER, QUICKCODE PROGRAMMING,
PRE-WIRED FOR 4TH AXIS ROTARY (NO ROTARY INCLUDED),
COOLANT SYSTEM WITH TANK & PUMP,

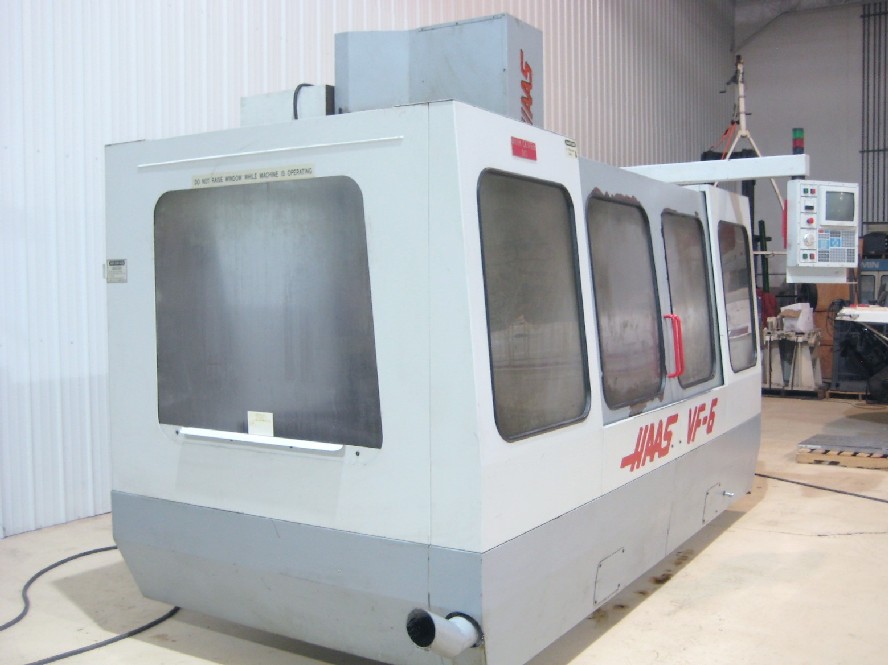

FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS,
MADE IN THE USA,
***VIDEO AVAILABLE UPON REQUEST***
